蓄電池夾子TA157&TA158
這些鉗型夾用于連接到汽車蓄電池端子，適合我們所有BNC-to-4mm的測試線。 |

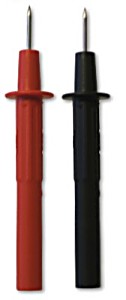

TA161刺針
像TA008中的探針，這些探針用來背刺多插頭端子絕緣。TA161和TA162具有靈活的彎曲度，以改善困難區域的接入。每個探頭適合我們BNC-to-4mm測試線的4mm插頭。需要注意的是，與TA008中的探針不同，探針針尖是不可替換的。 |
| Acupuncture Probe Set (TA008) |
The TA008 is a back pinning probe
 First and foremost the TA008 is a back pinning probe. In fact, it’s the smallest diameter back pinning probe that we know of. This is essential for probing today's small, fragile connector. It is also very sharp, so it slides past connector seals with ease. This product solves most of the problems associated with traditional back-pinning methods.
The TA008 is a piercing probe
Secondly, the TA008 is a piercing probe. Its small diameter, extra sharp pin makes it ideal for piercing the insulation on small gauge wires where traditional piercing tools might  cause damage.
The TA008 is field repairable
And finally, here's the best part. Don't you just hate it when you are using a back pinning probe and it bends or breaks? Before the TA008 came along, this meant that you had to buy a whole new back-probe. Not with the TA008; it's repairable. If the pin becomes damaged or useless in any way, simply take your pocket screwdriver, remove the set screw, pull out the old pin and install the new one! There's no need to replace the whole probe.
Contents:
- 5 Complete acupuncture probes
- 5 Screws
- 30 Replacement needles
|
| Large Dolphin/Gator Clips (TA005) |
- Length - 92 mm
- Height - 37.5 mm
- Depth - 15.3 mm
- Clamping limit - 30 mm
 The crocodile clips are fully insulated with a 4 mm socket in the handle, offering an easy connection to the TA000 test lead. The toothed grip offers good contact on fine wire, with a 30 mm jaw opening limit.
|

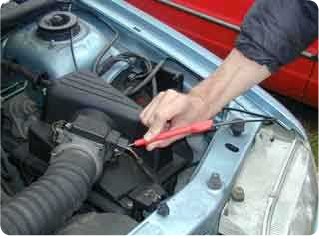

| Multimeter Probes (TA001) |
- Length - 115 mm
- Diameter - 20 mm
The multimeter probes offer a quick and easy solution, where a permanent connection is not required. The 4 mm socket in the handle of the probe connects straight into the TA000 test lead.
|

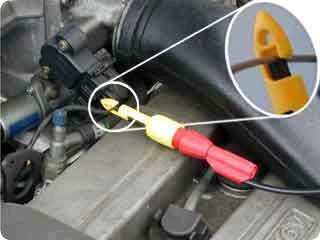

| Piercing Clips (TA007) |
T he TA007 Insulation Piercing Test Clip set is ideally suited for automotive test and diagnosis. The piercing clips allow the user to provide the exact pressure needed to pierce the insulation of a wide range of wire types and sizes. The clips also feature a rotating banana jack that prevents the test lead from twisting and keeps the oscilloscope in the circuit while the wire is pierced, providing immediate confirmation that contact with the conductor has been made.
|
| Shrouded to Unshrouded Adapter (TA016) |
 Shrouded-to-unshrouded adapters are for use with plugging the TA000 test leads into older style break out boxes that are not designed for use with shrouded 4 mm connectors.
|
| BNC to 4 mm Adapter (MI078) |
 The BNC to 4 mm adapter connects two 4 mm (“banana”) plugs to a BNC socket. If you have a sensor such as a current clamp with 4 mm plug outputs, for example, this adapter allows you to plug it into a Pico PC Oscilloscope with a BNC input. The 4 mm sockets and BNC plug are fully shrouded for safety.
| Specifications |
| Maxiumum voltage |
500 V CAT I |
| Maximum current |
3 A |
| Maximum resistance |
0.8 mΩ |
| Material |
Polyamide insulators (-20 °C to +80 °C), brass Ni ground contacts, brass Au / Co conductor |
| Length |
63 mm (about 2.5 in) |
| Width |
34 mm (about 1.4 in) |
| Height |
18.5 mm (about 0.8 in) |
| Weight |
24 g (about 1 oz) |
|
| Small Crocodile/Gator Clips (TA003) |
 Length - 54.5 mm- Height - 17.5 mm
- Depth - 7.5 mm
- Clamping limit - 11 mm
The crocodile clips are fully insulated with a 4 mm socket in the handle, offering an easy connection to the TA000 test lead. The toothed grip offers good contact on fine wire, with a 11 mm jaw opening limit.
|
| MI168 – S-hook |
 This small but essential accessory makes it easy to keep all those test leads tidy in the engine bay.
The S-hook is about 100 mm (4 in) long and coated in plastic and rubber to protect the vehicle's paintwork and your cables. Hook one end underneath the bonnet or hood, and use the other end to hang a bundle of cables up to about 25 mm (1 in) thick.
|
